 LC Fiber Optic Adapter

LC/UPC Mating Sleeves

LC/APC Adapters

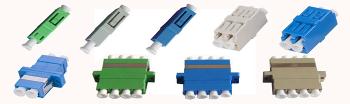

LC fiber optic adapters; We supply these products are various types including single mode SM and multimode MM, zirconia sleeve and bronze sleeve, simplex and duplex options. Standard female to female LC fiber optic adapter and hybrid LC fiber optic adapters.

Typical LC fiber optic adapters use a plastic housing normally blue for the singlemode LC UPC it is blue color, single mode LC APC it is green color, multimode LC UPC is beige color and a 10Gb aqua .  These are for 1 fiber mating, duplex are for 2 fiber or 1 pair. And the quad adapters are for 4 fiber adapter, 2 pair or 4 ports.  We also supply the metal housing LC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve LC adapters which are generally multimode types.

Flowchart: Alternate Process: Flowchart: Alternate Process: Fiber Optic Cables

Toll Free (877)-320-3143

Call  (321)-473-8933

For Fiber Optic Cables and a fiber optic distribution companyUSA manufactured Fiber Optic CablesRoHS Compliant Fiber Optic CablesFiber Optic Cables
FibertronicsFiber Optic GSA Contract supplierFlowchart: Alternate Process: Fiber Optic Cables

LC Single Mode                  LC/APC Singlemode                LC 62.5µm Multimode



LC Simplex Adapters

PART#

TYPE

BODY COLOR

PRICE

FT-ADSX-LCMMTO

LC Simplex Multimode Adapter w/o flange

Beige

$1.50

FT-ADSX-LCMMAO

LC Simplex Multimode 10Gb OM3 Adapter w/o flange

Aqua

$1.85

FT-ADSX-LCSMBO

LC Simplex Singlemode Adapter w/o flange

Blue

$2.25

FT-ADSX-LCSMGO

LC/APC Simplex Singlemode Adapter w/o flange

Green

$2.25

LC Single Mode                  LC/APC Singlemode                LC 62.5µm Multimode                  LC 50µm Multimode



LC Duplex Adapters

PART#

TYPE

BODY COLOR

PRICE

FT-ADDX-LCMMTW

LC Duplex Multimode Adapter w/flange

Beige

$2.50

FT-ADDX-LCMMAW

LC Duplex Multimode 10Gb OM3 Adapter w/flange

Aqua

$2.50

FT-ADDX-LCSMBW

LC Duplex Singlemode Adapter w/flange

Blue

$2.65

FT-ADDX-LCSMGW

LC/APC Duplex Singlemode Adapter w/flange

Green

$2.65

FT-ADDX-LCMMTO

LC Duplex Multimode Adapter w/o flange

Beige

$2.50

FT-ADDX-LCMMAO

LC Duplex Multimode 10Gb OM3 Adapter w/o flange

Aqua

$2.50

FT-ADDX-LCSMBO

LC Duplex Singlemode Adapter w/o flange

Blue

$2.65

FT-ADDX-LCSMGO

LC/APC Duplex Singlemode Adapter w/o flange

Green

$2.65

LC Single Mode                  LC/APC Singlemode                LC 62.5µm Multimode                  LC 50µm Multimode



LC Duplex Adapters

PART#

TYPE

BODY COLOR

PRICE

FT-ADQX-LCMMTW

LC Quad Multimode Adapter w/flange

Beige

$4.75

FT-ADQX-LCMMAW

LC Quad Multimode 10Gb OM3 Adapter w/flange

Aqua

$4.75

FT-ADQX-LCSMBW

LC Quad Singlemode Adapter w/flange

Blue

$5.85

FT-ADQX-LCSMGW

LC/APC Quad Singlemode Adapter w/flange

Green

$5.85

FT-ADQX-LCMMTO

LC Quad Multimode Adapter w/o flange

Beige

$4.75

FT-ADQX-LCMMAO

LC Quad Multimode 10Gb OM3 Adapter w/o flange

Aqua

$4.75

FT-ADQX-LCSMBO

LC Quad Singlemode Adapter w/o flange

Blue

$5.85

FT-ADQX-LCSMGO

LC/APC Quad Singlemode Adapter w/o flange

Green

$5.85
