 SC Fiber Optic Adapter

SC/UPC Mating Sleeves

SC/APC Adapters

SC fiber optic adapters; We supply these products are various types including single mode SM and multimode MM, zirconia sleeve and bronze sleeve, simplex and duplex options. Standard female to female SC fiber optic adapter and hybrid SC fiber optic adapters.

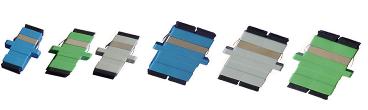

Typical SC fiber optic adapters use a plastic housing normally blue for the singlemode SC UPC it is blue color, single mode SC APC it is green color, multimode SC UPC is beige color and a 10Gb aqua .  These are for 1 fiber mating, duplex are for 2 fiber or 1 pair. And the quad adapters are for 4 fiber adapter, 2 pair or 4 ports.  We also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.

Flowchart: Alternate Process: Fiber Optic Cables

Toll Free (877)-320-3143

Call  (321)-473-8933

For Fiber Optic Cables and a fiber optic distribution companyUSA manufactured Fiber Optic CablesRoHS Compliant Fiber Optic CablesFiber Optic Cables
FibertronicsFiber Optic GSA Contract supplierFlowchart: Alternate Process: Fiber Optic Cables

SC Single Mode                  SC/APC Singlemode                SC 62.5µm Multimode                  SC 50µm Multimode



SC Simplex Adapters

PART#

TYPE

BODY COLOR

PRICE

FT-ADSX-SCMMTW

SC Simplex Multimode Adapter w/flange

Beige

$1.00

FT-ADSX-SCMMAW

SC Simplex Multimode 10Gb OM3 Adapter w/flange

Aqua

$1.35

FT-ADSX-SCSMBW

SC Simplex Singlemode Adapter w/flange

Blue

$1.90

FT-ADSX-SCSMGW

SC/APC Simplex Singlemode Adapter w/flange

Green

$1.90

FT-ADSX-SCMMTO

SC Simplex Multimode Adapter w/o flange

Beige

$1.00

FT-ADSX-SCMMAO

SC Simplex Multimode 10Gb OM3 Adapter w/o flange

Aqua

$1.35

FT-ADSX-SCSMBO

SC Simplex Singlemode Adapter w/o flange

Blue

$1.90

FT-ADSX-SCSMGO

SC/APC Simplex Singlemode Adapter w/o flange

Green

$1.90

SC Single Mode                  SC/APC Singlemode                SC 62.5µm Multimode                  SC 50µm Multimode



SC Duplex Adapters

PART#

TYPE

BODY COLOR

PRICE

FT-ADDX-SCMMTW

SC Duplex Multimode Adapter w/flange

Beige

$2.25

FT-ADDX-SCMMAW

SC Duplex Multimode 10Gb OM3 Adapter w/flange

Aqua

$2.25

FT-ADDX-SCSMBW

SC Duplex Singlemode Adapter w/flange

Blue

$2.65

FT-ADDX-SCSMGW

SC/APC Duplex Singlemode Adapter w/flange

Green

$2.65

FT-ADDX-SCMMTO

SC Duplex Multimode Adapter w/o flange

Beige

$2.25

FT-ADDX-SCMMAO

SC Duplex Multimode 10Gb OM3 Adapter w/o flange

Aqua

$2.25

FT-ADDX-SCSMBO

SC Duplex Singlemode Adapter w/o flange

Blue

$2.65

FT-ADDX-SCSMGO

SC/APC Duplex Singlemode Adapter w/o flange

Green

$2.65
